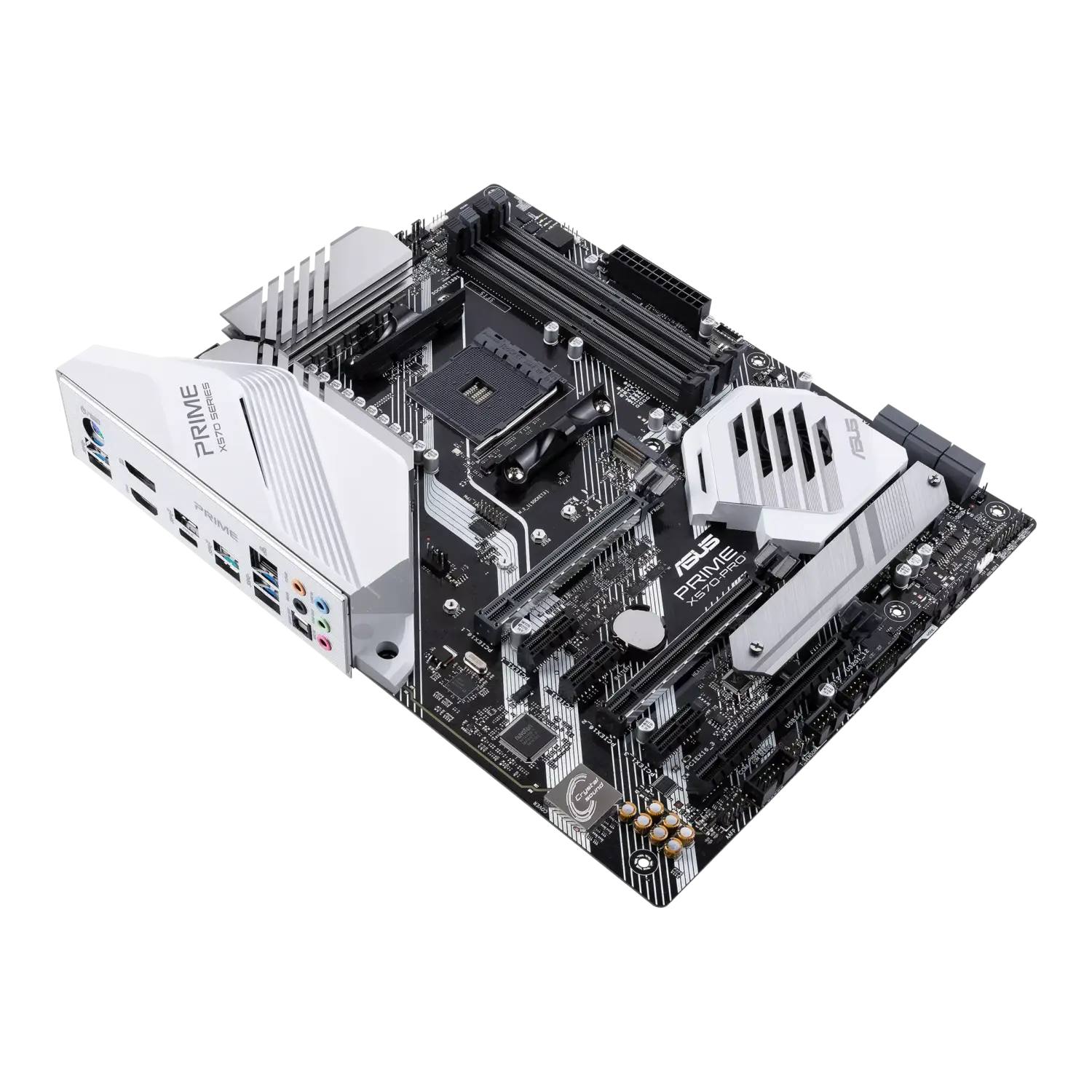

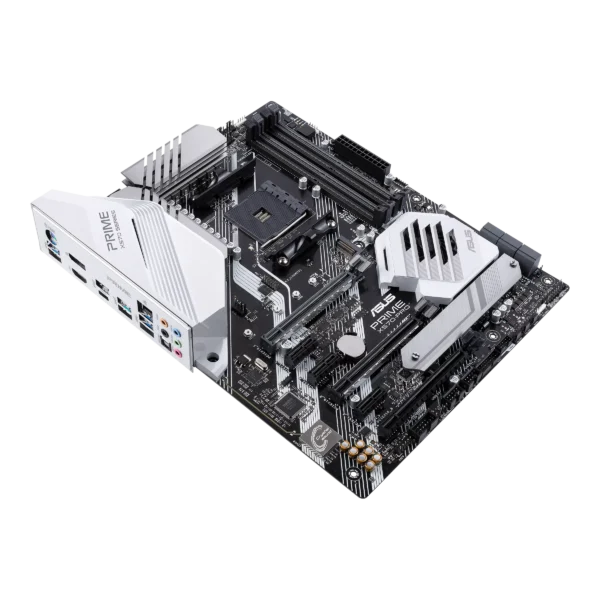

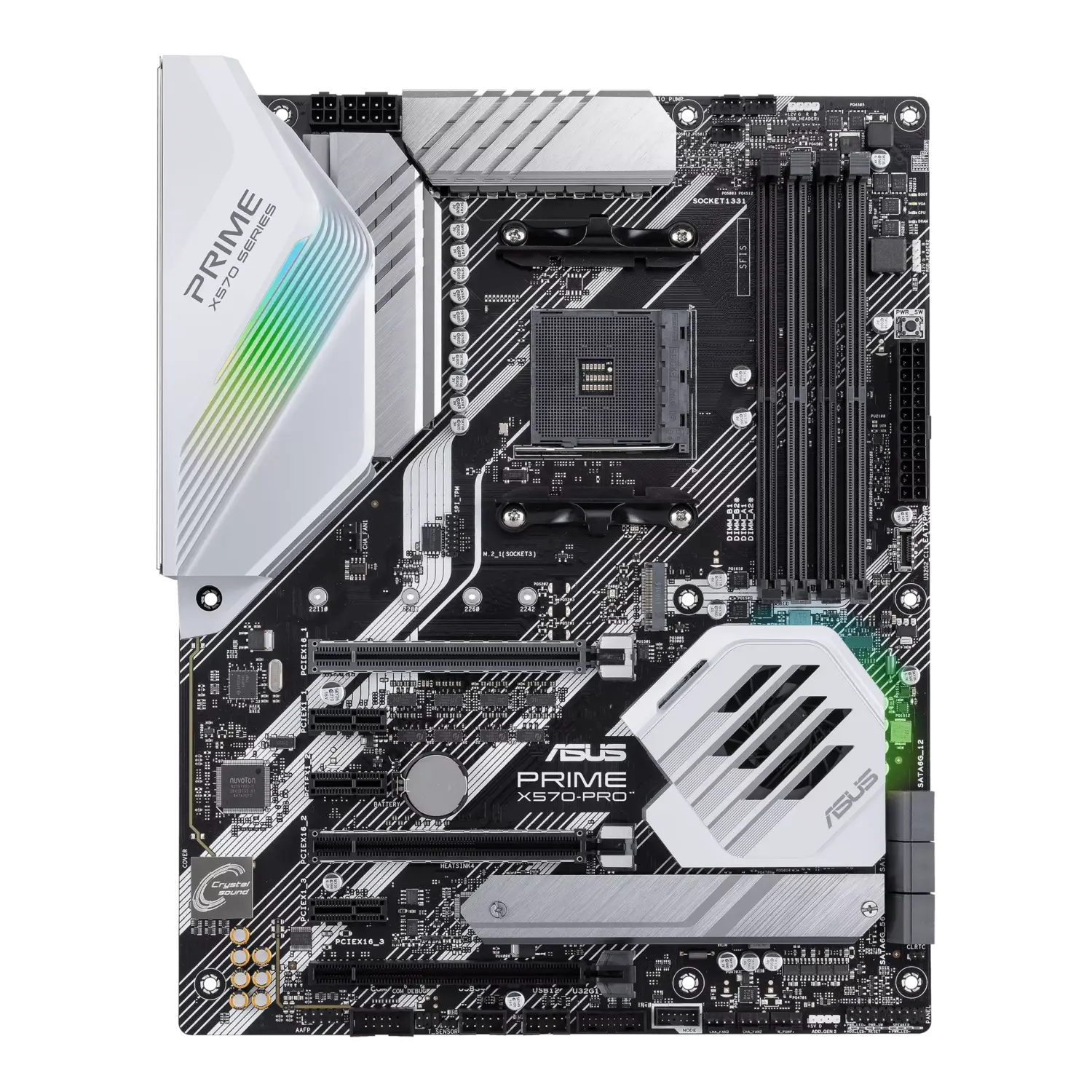

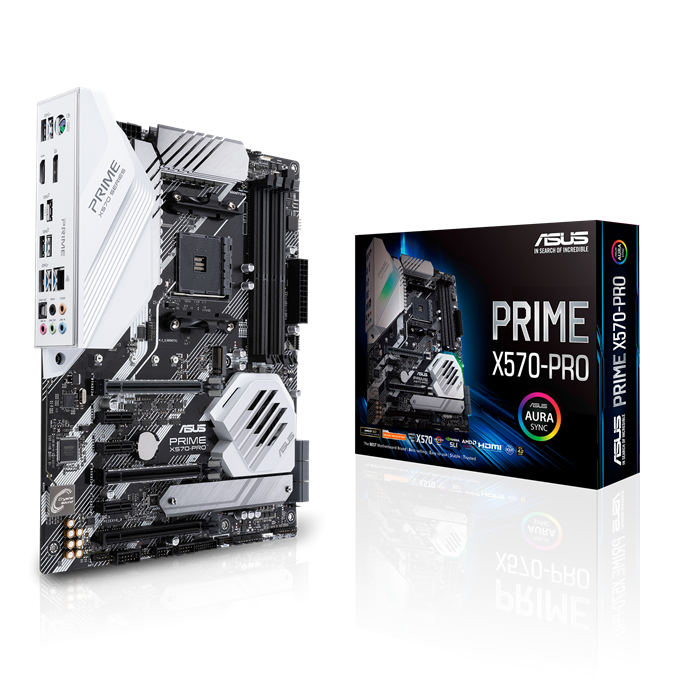

ASUS PRIME X570-PRO

CPU Socket: AMD AM4

Chipset: AMD X570

Supported CPUs: AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Memory:

• 4x DDR4 DIMM slots, up to 128GB
• Supports DDR4 5100MHz (OC)
• Dual Channel

Storage:

• 6x SATA 6G ports
• 1x M.2 slot (PCIe 4.0 x4 & SATA mode)
• 1x M.2 slot (PCIe 3.0 x4 mode)

Expansion:

• 2x PCIe 4.0 x16 slots (x16/x8 bandwidth)
• 1x PCIe 3.0 x1 slot

Networking:

• 1x 2.5 Gigabit Ethernet port (Realtek RTL8125B)
• Intel® Wi-Fi 6 (802.11ax) with MU-MIMO support
• Bluetooth 5.1

Audio:

• Realtek® ALC S1200A Codec
• DTS® Custom for GAMING Headsets

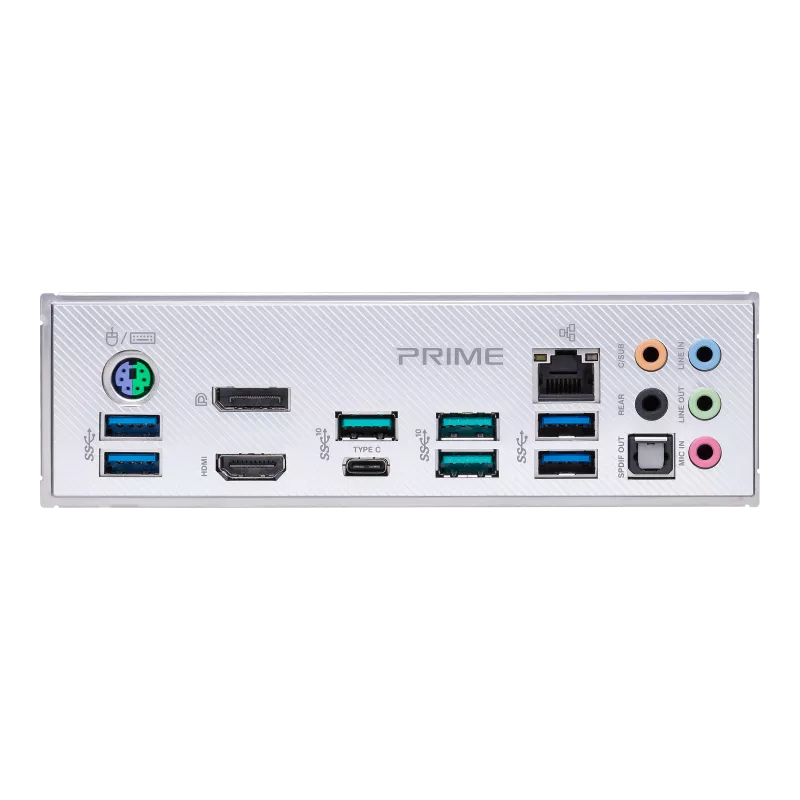

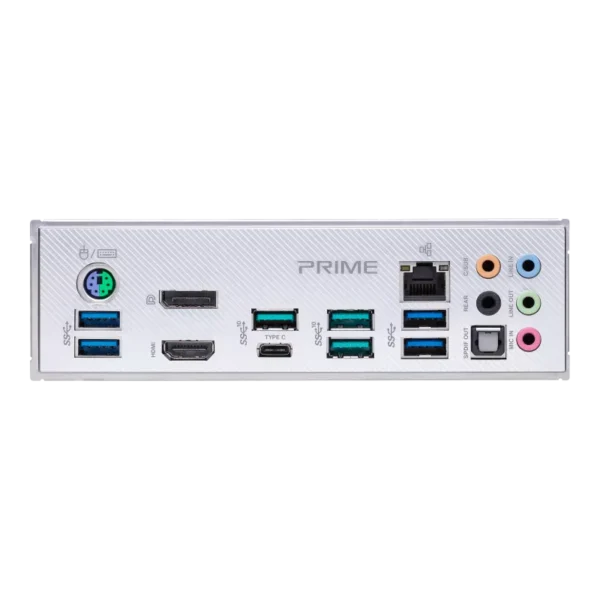

USB:

• Rear USB Port ( Total 10 )
  • 2x USB 2.0
  • 4x USB 3.2 Gen 1
  • 4x USB 3.2 Gen 2 (2x Type-A, 2x Type-C)
• Front USB Port ( Total 8 )
  • 4x USB 3.2 Gen 1
  • 4x USB 2.0

Other features:

• Aura Sync RGB lighting
• 5X Protection III for enhanced system stability
• Fan Xpert 4 Cooling Technology
• BIOS FlashBack
• Pre-mounted M.2 Heatsink
• Addressable Gen 2 RGB header
• Aura Sync RGB header
• Dimensions: 30.5 cm x 24.4 cm (ATX form factor)
